SWP-A Universal Coupling

Long Type, Telescopic

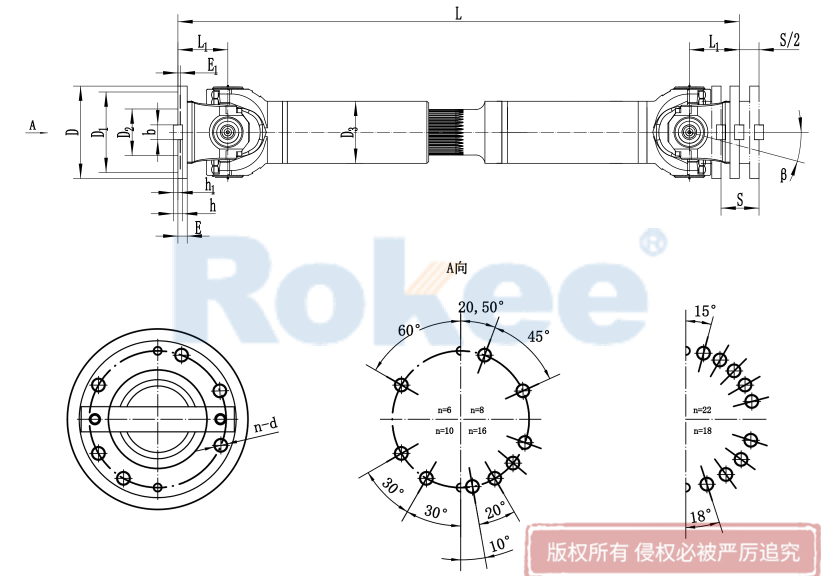

SWP-A Universal Coupling

Model	Rotary Diameter D mm	Nominal Torque T_n kN ·m	Pulsating Fatigue Torque T_p kN ·m	Alternating Fatigue Torque T_f kN ·m	Axis Angle β(°)	Expansion Amount s mm	Size / mm										Rotational Inertia kg ·m²		Quality kg
Model	Rotary Diameter D mm	Nominal Torque T_n kN ·m	Pulsating Fatigue Torque T_p kN ·m	Alternating Fatigue Torque T_f kN ·m	Axis Angle β(°)	Expansion Amount s mm	L_min	D1	D2 (H7)	D3	E	E1	bxh	h1	L1	Nxd	L_min mm	Increase 100mm	L_min mm	Increase 100mm
SWP160A	160	20	14	10	≤15	50	655	140	95	121	15	4	20×12	6	90	6xφ13	0.167	0.008	52	2.5
SWP180A	180	28	20	14	≤15	60	760	155	105	127	15	4	24×14	7	105	6xφ15	0.304	0.012	75	3.4
SWP200A	200	40	28	20	≤15	70	825	175	125	140	17	5	28×16	8	120	8×φ15	0.490	0.016	98	3.8
SWP225A	225	56	40	28	≤15	80	950	196	135	168	20	5	32×18	9	145	8xφ17	0.916	0.039	143	6.2
SWP250A	250	80	56	40	≤15	90	1055	218	150	219	25	5	40×25	12.5	165	8xφ19	1.763	0.079	226	7.2
SWP285A	285	112	78	56	≤15	100	1200	245	170	219	27	7	40×30	15	180	8xφ21	3.193	0.099	313	9.4
SWP315A	315	160	112	80	≤15	110	1330	280	185	273	32	7	40×30	15	205	10×φ23	5.270	0.219	425	12.8
SWP350A	350	224	157	112	≤15	120	1480	310	210	273	35	8	50×32	16	225	10×φ23	8.645	0.226	565	13.9
SWP390A	390	315	220	158	≤10	120	1480	345	235	273	40	8	70×36	18	215	10×φ25	12.920	0.303	680	21.1
SWP435A	435	450	315	225	≤10	150	1670	385	255	325	42	10	80×40	20	245	16×φ28	24.240	0.545	1010	25.7
SWP480A	480	630	440	315	≤10	170	1860	425	275	351	47	12	90×45	22.5	275	16×φ31	38.736	0.755	1345	30.7
SWP550A	550	900	630	450	≤10	190	2100	492	320	426	50	12	100×45	22.5	305	16×φ31	76.570	1.435	2015	38.1
SWP600A	600	1250	875	625	≤10	210	2520	544	380	480	55	15	90×55	27.5	370	22xφ34	134.100	2.493	2980	53.2
SWP650A	650	1600	1120	800	≤10	230	2630	585	390	500	60	15	100×60	30	405	18×φ38	192.720	3.210	3650	65.1
